When you have a message to share with the world – more businesses trust Sharp Professional LCD displays to make it happen.

Through U.S. Professional Display Distributor sales channels, Sharp is a leading brand of non-touch and touch-enabled Professional Flat Panel Displays.*

Sharp’s professional and commercial displays are specially engineered for business applications and are offered in a wide range of sizes and varying capabilities. From high-impact displays for digital signage, to state-of-the-art ultra-narrow bezel video walls, to the award-winning AQUOS BOARD® interactive display systems and Windows collaboration display, Sharp commercial and professional displays help you communicate, collaborate and disseminate information brilliantly.

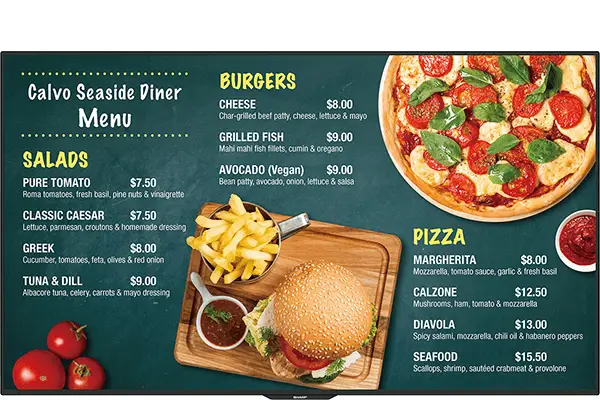

Sharp, Professional Display, menu, Doing Better Business
Sharp Professional Displays
sharp, School, Aquos, education, Doing Better Business
AQUOS BOARD® Interactive Display Systems

VIDEO WALL DISPLAYS

Sharp, Pro Displays, Video Wall, Doing Better Business

Video Wall Display Features

Overview

With the slimmest bezel in the 60” diagonal class*, the PN-V series is the standard for multi-screen video wall displays. Portrait and landscape compatible, full array LED backlighting and virtually seamless borders help you create high impact video walls in almost any size and format. * Based on published information as of January 8, 2010 for LCD panels of 60-inches or larger in size.

Enlarge (Zoom) Display Mode

(for up to 25 Monitors)

The Enlarge (Zoom) Display mode can spread one image across up to 25 monitors (in a 5 x 5 configuration) from a PC. The Frame Width Adjustment function virtually eliminates misalignment and boldly enhances the enlarged image on a multi-screen display.

Sharp Displays, Enlarge Display Mode, Doing Better Business

Featured Resources

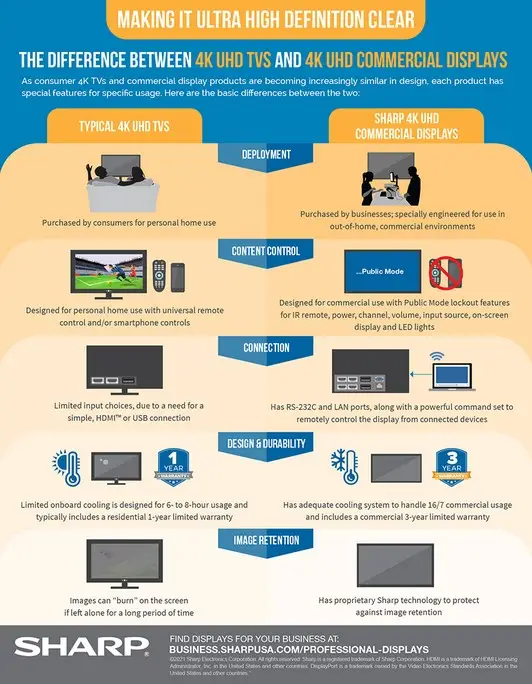

Difference Between 4K TV's & 4K Professional Displays
University Wisconsin, Video Wall, Case Study, education, Doing Better Business

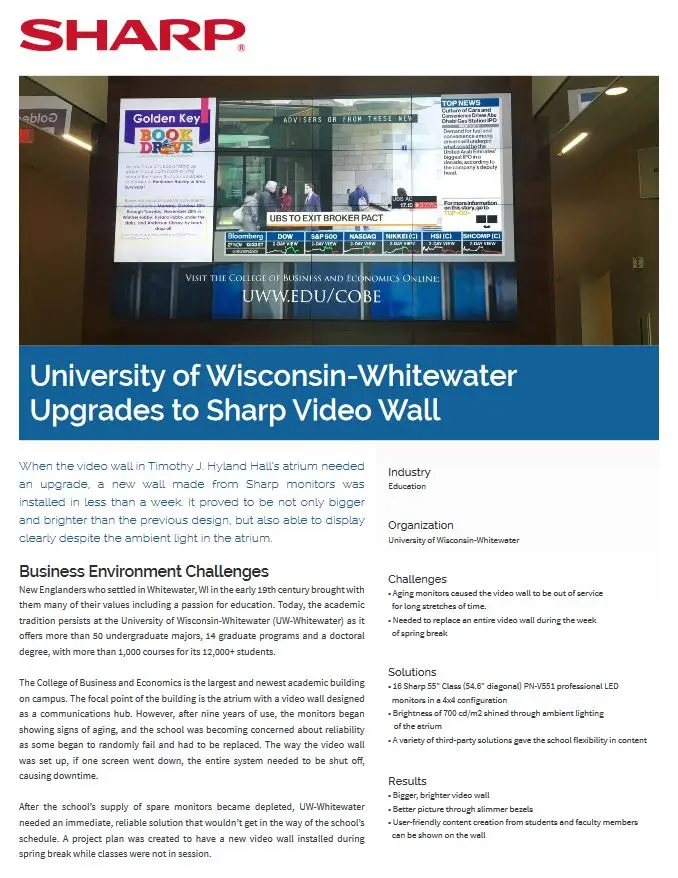

University of Wisconsin Video Wall Case Study
Sharp, Why Smart Cities Need Digital Signage, Doing Better Business
Why Smart Cities Need Digital Signage
Sharp, Professional Displays, Improve Communications, corporate, Doing Better Business

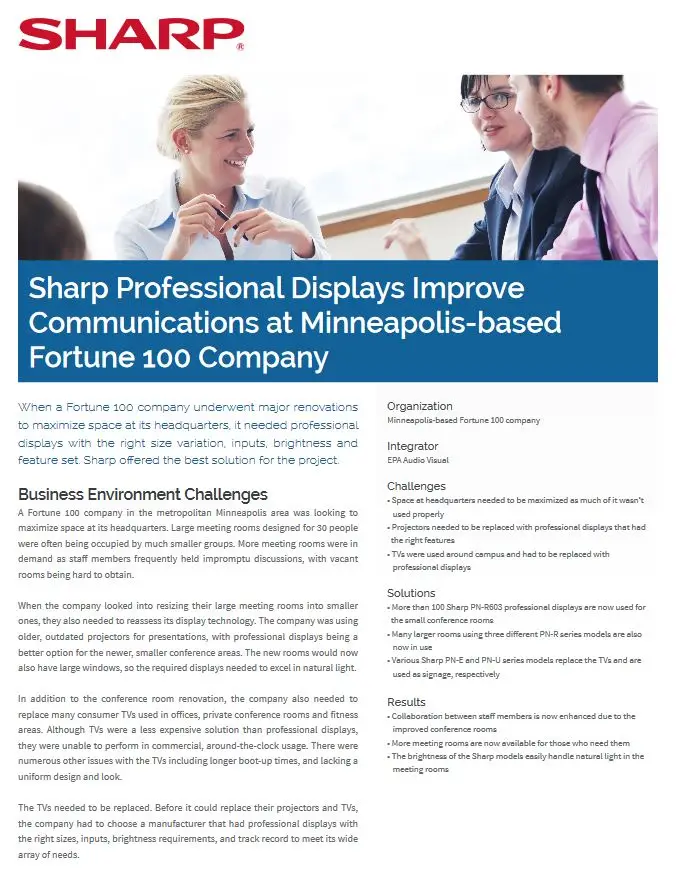

Sharp Professional Displays Improve Communications
Sharp, Choosing The Right Smart Signage Solutions For Digital Signage, Doing Better Business
Choosing the Right Smart Signage Solutions
Sharp, Display, Led Back Lit, Doing Better Business

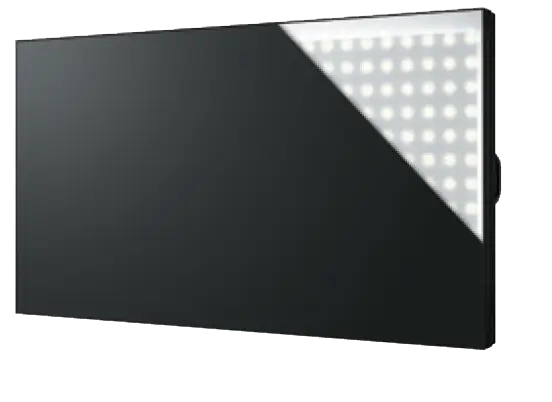

Full-Array LED Backlight

Uniform Brightness with Low Energy Consumption

To give the PN-V series more uniform brightness than conventional CCFL* backlighting can offer, Sharp has positioned LED elements across the entire panel directly behind the liquid crystal layers, ensuring that Sharp multi-screen displays are bright, beautiful and uniform. * Cold Cathode Fluorescent Lamp

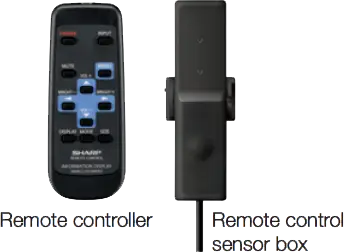

Control Kits

(sold separately)

When one of the monitors in a multi-screen configuration is fitted with a remote control sensor box, all of the monitors can be conveniently operated through one remote control unit. And to help with overall energy savings, a brightness sensor automatically adjusts the brightness of the backlight to match the ambient lighting.

Sharp, Display Control Kits, Doing Better Business
Sharp, Displays, Videowall Possibilities, Doing Better Business

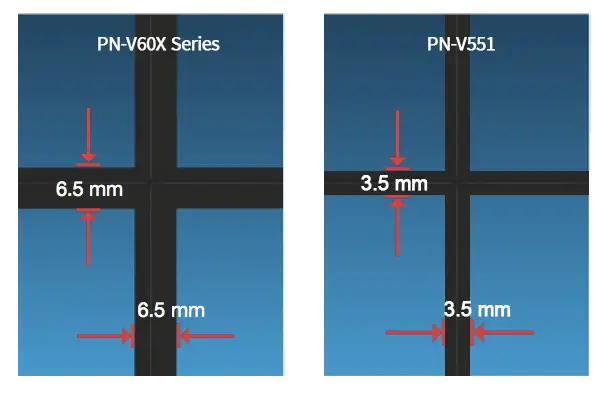

Almost Limitless Display Possibilities

Thanks to the PN-V series ultra-slim bezel, the borders between neighboring monitors are a virtually seamless 6.5 mm* wide (for the PN-V60X Series) and 3.5 mm* (for the PN-V551) When used in a video wall configuration, this enables the display of crisp and high impact images of almost any size and format. And, with 24/7 certified reliability, 3-year onsite parts and labor limited warranty and ENERGY STAR® qualified, the PN-V series is designed to be exceptionally reliable. * Does not include the gap between the monitors.

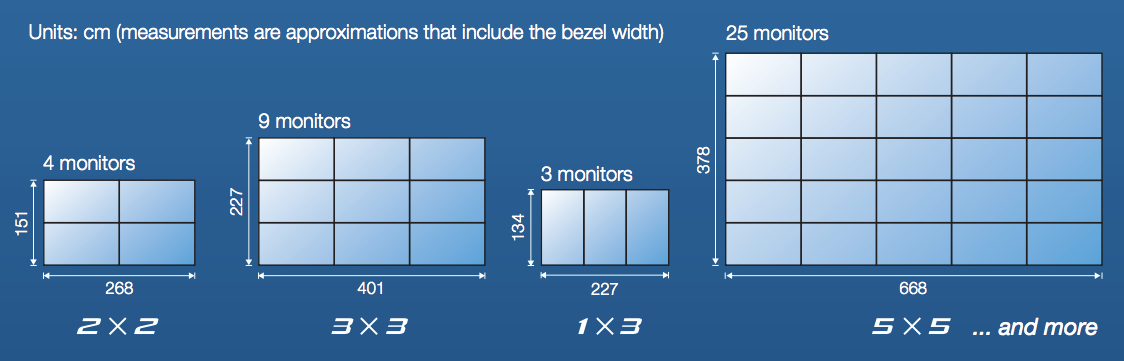

Create Dynamic Video Walls

Units: cm (measurements are approximations that include the bezel width) Almost any number of PN-V series monitors January be joined together to create high impact multi-screen video walls. These configurations January be controlled through RS-232C or over a network.* Their ease of control and ease of integration help simplify the design and installation of sophisticated video wall displays of most any size and shape.
Sharp, Displays, Videowall, Doing Better Business
Sharp, Displays, Videowall, Doing Better Business

Video Wall Mounting Systems

Manufactured to Sharp․s specifications by Peerless®, Sharp offers eight optional mounting hardware bundles for the PN-V series video wall displays. These hardware bundles include all of the hardware needed for the most popular video wall configurations, for both wall mounting and free standing installations.

Professional Display Features

Professional Monitors and Commercial HDTV Displays

Reliability

Sharp large-format professional LCD monitors and commercial HDTV displays are designed to work virtually wherever, whenever and for whatever you need. Built solid, these Sharp LCD monitors are ideal for use in most any demanding environment. And because these monitors utilize an advanced fan-less architecture that doesn’t require mechanical air ventilation fans, they operate silently with maximum reliability and with a minimum of dust intake. Every Sharp commercial display is backed by a 3-year on-site limited warranty covering parts, labor and backlight.

Picture Quality

If you demand exceptional picture quality, most Sharp large-format commercial LCD displays deliver full 1920 x 1080 (1080p) resolution from virtually any analog or digital RGB source, or HD video source. Fine-print text and intricate graphics are stunningly crisp and clear. Whether for digital signage, command control or video conferencing, the PN Series displays bright, attention-grabbing imagery.

Versatility

Do you need better video conferencing experience? Digital signage? Large format displays for hospitality or stadiums? You will find all that and more with the Sharp’s line-up of commercial LCD displays. Thin and lightweight, they are easy to mount and the PN series offer the choice of portrait and landscape installation to suit a variety of content and applications. Available in a range of sizes from 42″ class (42-1/16″ diagonal) to 80″ class (80″ diagonal), the PN Series is ideal for a variety of applications including videoconferencing, digital signage, CAD/simulation, corporate, government/education, sports arenas and houses of worship. And with Enlarge (zoom) Display mode, installations of up to 5 x 5 Sharp PN Series monitors* can be placed together to provide exceptionally large, high-impact video wall displays. *Some installations January require additional 3rd party hardware.

Design

Slim Bezel

A new slim bezel and thinner profile create a stylishly slender design, while a brushed metal finish gives the entire bezel a high quality look and feel.

Lightweight Design

Through improvements in LCD parts and materials, monitor weight has been reduced over earlier models, making it easier to transport and install the display.

Built-In Speakers

Built-in 10 watts per channel stereo speakers eliminate the need for an external audio system for many installations. These rear-mounted speakers are ideal for conveying audio content along with background music. Audio line-out terminals are also provided for easy connection with external audio components, and when used with the optional PN-ZB01 input/output expansion board, stereo speaker terminals (10W + 10W) are available.

Carrying Handles for Safe Setup

Heavy-duty carrying handles are included with each monitor to ensure safe handling. These handles January be detached when the display is installed. All models additionally incorporate a VESA-compliant mounting hole configuration to help ensure a safe and secure installation with compatible third-party mounting hardware.
Sharp, Displays, Professional Display, Doing Better Business
Sharp, Professional Displays, Doing Better Business

Expandability

ID Coding

Using the RS-232C interface, each Sharp LCD monitor can be easily controlled and monitored from a central location via a PC. Each monitor can be assigned an individual ID code to specify on/off, input change and various screen adjustments and settings.

Scheduling

For total ease of operation, the Schedule function allows programming of up to eight settings for automatic monitor turn on/off at specified times on a daily, weekly, or one-time basis.

Web Browser Setting

Sharp PN-E series LCD monitors can be easily operated through a Web browser and optional monitor control software.

SNMP Support

Display status, continuous operating time, and other parameters can be monitored over a local area network using Simple Network Management Protocol (SNMP).

Other Key Features

Fanless Architecture

Sharp LCD monitors are designed to maintain airflow and dissipate heat without the use of mechanical air-ventilation fans, which can attract dust and create noise.

Built-In Temperature Sensor

A built-in sensor detects when the temperature inside a monitor rises, and the backlight system automatically adjusts to keep the temperature within operational level.

Power On Delay

To reduce the load placed on the power supply when a number of monitors are turned on at the same time, the PN-E Series allows a time delay between the startup of each monitor when configured in videowalls and multi-monitor installations.

Log Saving

The Log Save/Output function saves operating logs, signal changes, and information on operational irregularities, which helps boost the troubleshooting efficiency of service technicians.

Hardware Diagnosis

The Hardware Diagnosis function detects any irregularities in power supply voltage and indicates those irregularities on the monitor.

E-Mail Notification

The E-Mail Notification function allows regular display status updates and malfunctions to be sent to a specified e-mail address.

Automatic Adjustment

When using an analog RGB connection, if a change occurs with the input signal timing, the clock phase will adjust automatically.
